Schooner Ernestina is hauled out at
Kelley's. We continue
with the jack hammer in the main hold (fish hold)
and then, once the 4" of concrete is
cleared, remove the tightly packed ingots of lead
ballast to expose the top of the keelson. This is
where we will drill four 1" holes through
the 45" of keelson, frames, keel and false
keel. You can see the original hold ladder to the
right.
On the outside of the hull
Dutch Maranhas and Bob Aufiero of Atlantic Coast
Detectors volunteered their time to come by and
map out the metal inside the keel so we would be
able to bypass it as we drilled the holes for the
keel bolts. Dutch runs his business based in New
Bedford and offers technical support and sells
detectors for all purposes. The ones he and Bob
brought to Ernestina were high tech enough to
indicate the type of metal and depth in the
timber. We could tell what was iron and what was
stainless steel.
Capt. Sophie Morse marked out
the fastenings on the hull so that Director Gregg
Swanzey could come along with the drill and run
the holes. We hope to be putting steel beginning
Friday.
Steve Kirk began reefing out
the garboard seam in preparation for caulking
next week.
Captains: Sophie Morse and Amanda Madeira
Schooner Ernestina on the ways at Kelley
Shipyard.
|
Capt. Amanda Madeira and Franko
Calascione jack hammer out concrete in the fish
hold.
Capt. Amanda Madeira and Steve Kirk pull out
lead ingots to access the keelson.

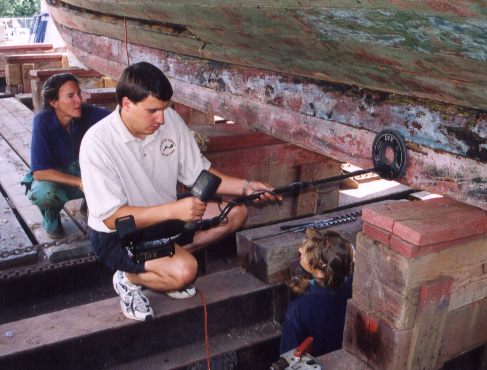

Capts. Amanda Madeira and Sophie Morse work
with Dutch Maranhas of Atlantic Coast Detectors
to mark out the existing metal fastenings.
Some the marks showing fastenings through the
false keel and keel. The garboard seam is at the
base of the plank at the top of the image.
Director Gregg Swanzey drilling a keel bolt
hole up into the fo'c's'le.
The bit passes safely by the marked fastenings
through a scarf in the false keel.

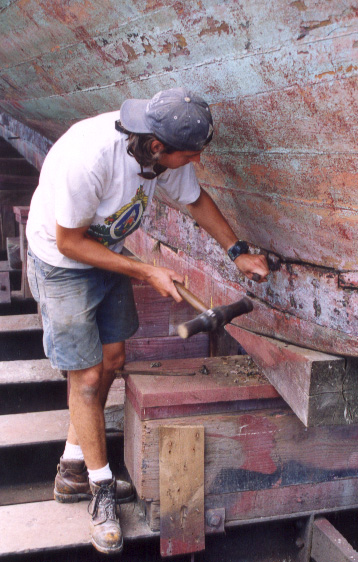

Steve Kirk reefs out the garboard seam (he
pulls out the cotton caulking)
|
